Free PDF Tools 8: Add PDF Watermark by Image

This FREE PDF Tool can add a PDF watermark using a graphic image (bmp, png, gif, jpeg, tiff, wmf) that appears behind or over the existing PDF document content when a document is displayed or printed.

There are options of image's scale size, rotation, position, background order and web link.

Here are the steps on how to Add PDF Watermark by Image into PDF Pages:

1. Choose  Free PDF Tools > Add  PDF Watermark > by Image

2. Select a PDF file that you want to add watermark by Image.

3. Select an image file (bmp, png, gif, jpeg, tiff, wmf) that you want to add into this PDF file.

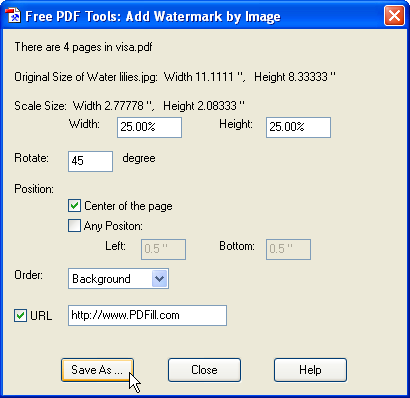

4. The Add Watermark by Image dialog box comes up:

  • Enter Image Scale Size in Width and Height
  • Enter Image Rotation in degree.
  • Select the Position of the image:
    • Center of the page
    • Any position with left and bottom positions defined
  • Select Order:
    • Background means that the image is behind the existing document content.
    • Foreground means that the image is over the existing document.
  • Enter your URL address that the click on this image will direct to a web page defined by this URL.

4.Click Save As to have a new PDF file.  The new file may be launched automatically if you have installed Adobe Reader.

5. Do experiment with the options available to see which best suit your needs.  Click Close to finish.

Note: If you have problem to read your PDF into PDFill, open your PDF document inside Adobe Reader. Then, print into a new PDF using PDFill PDF Writer.


Batch (DOS) Command Support: (It is only available for the registered user of PDFill PDF Editor)

You can start a batch job in Windows by issuing the execution command directly from the MS-DOS command prompt window without opening the PDFill GUI.
Note: Please put "" on your file name with space. Make sure all command is in one line.

"C:\Program Files\PlotSoft\PDFill\PDFill.exe" WatermarkImage Input.pdf Output.pdf ImagePathName scaleX scaleY rotateDegree -positionFlag 1 -left 36 -bottom 72 -flagOrder 1 -URL "http://www.PDFill.com"

  • ImagePathName: An image file (bmp, png, gif, jpeg, tiff, wmf) that you want to add into the PDF file as Watermark.
  • scaleX scaleY: The Percentage of Image Scale Size in Width and Height.
  • rotateDegree: Image Rotation in degree.
  • -positionFlag 1: (Optional) 0 is Center of the page and 1 is Any Position. Default is 0.
  • -left 36:  (Optional) Left position in Point defined when -positionFlag 1. Default is 0.
  • -bottom 72: (Optional) Bottom position in Point defined when -positionFlag 1. Default is 0.
  • -flagOrder 1: (Optional) 0 is Background and 1 is Foreground. Default is 1.
  • -URL "http://www.PDFill.com": (Optional) The URL address that the click on this image will direct to a web page defined by this URL.
  • Example:
    "C:\Program Files\PlotSoft\PDFill\PDFill.exe" WatermarkImage
    "D:\BatchTest\FormsAPIReference.pdf"  "D:\BatchTest\output.pdf"  "D:\BatchTest\Water lilies.jpg"  100 100 45 -positionFlag 1 -left 36 -bottom 72 -flagOrder 1 -URL "http://www.PDFill.com"
