PDFill PDF Barcode Generator: 10. Code 128 Barcode

(See Example PDF and Example PDFill Project File  )

Code 128 Barcode is a high-density linear symbology that encodes text, numbers, numerous functions and the entire 128 ASCII character set (from ASCII 0 to ASCII 128.) It is commonly used for several implementations; and is also referred to as ISBT-128, GS1-128, UCC-128, EAN-128 and USS Code 128.

1.  Steps on how to insert a Code 128 into PDF Page:

• Choose Menu Insert > Select PDF Barcode > Code 128

• Hold Left mouse button to create an area of the required size and then release it

2. Access the properties:

• Click the Selection button first.
• Click inside the line to highlight it and click Properties Button
• Or, click the line and double-click again
• Or, Key F4

3. Set the properties:

Here is the list of the properties.

String	The text to be encoded. Examples: 0123456789 hello 24132399420058289[FNC1]3700000050[FNC1]422356 (01)00000090311314(10)ABC123(15)060916 For RAW Type: 0123456789 My Raw Barcode (0 - 9)
Barcode Color	The color of the bars
Text Color	The color of the text
Position (Left, Right, Width, Height)	The X and Y coordinate of the box to define the position and size of the barcode.
Scale	The ratio of the displayed barcode to the actual barcode
Background Color	The color of the background
Rotate	The rotation degree from 3 clock relative to the barcode center
Margin (Horizontal/Vertical)	The distance from the barcode to the border of the background.
Main Option	DOS Command	Default	Sub Option
Code 128 Type	-codeType	0	Plain CODE128, CODE128_UCC, CODE128_RAW
Text Font Size	-fontSize	8.0
Text Base Line Distance	-baseline	8.0
Bar Height	-barHeight	24.0
Minimum Bar Width	-X	0.8
Horizontal Alignment	-textAlignment	1	left(0), middle (1) and right (2)
Text Over the Bar	-textOverbar	0	FALSE (0) and TRUE (1)
Font Name	-fontName	Times New Roman
Font Style	-fontStyle	0	regular(0), bold(1), italic(2), bold and italics(3)
Reset	Reset all the Sub Options to the default values
Action: Add Link, Submit, JavaScript and more ...	See PDF Actions.
Get Barcode Image	Save the barcode image as a PNG file after clicking OK.

4. Example:

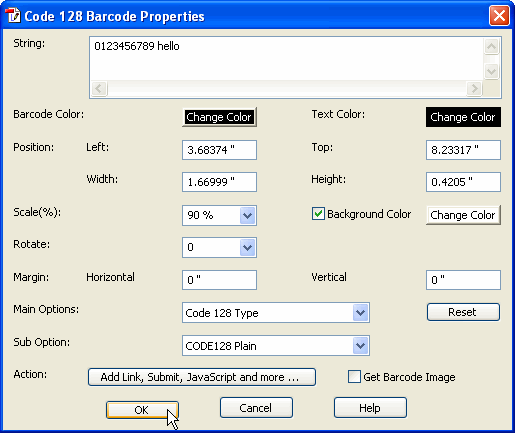

5. Screenshot:
