Align Tool and Smart Positioning

After you create new PDF objects , you may need to rearrange, resize, or move them to give the page a cleaner, more professional look.

To make adjustments in the layout of new PDFill Objects, there are two arranging tools (Align Tool and Smart Positioning) to arrange and align objects on a document page. With these tools, you can easily align multiple objects to the left, the right, vertically, horizontally, to the top and to the bottom. You can update the properties of the selected objects and send objects to the "back" or bring objects to the "front" like Microsoft Word.

To select one or more objects, you can use the Multiple Selection by Mouse Dragging (Hold left mouse button to draw a box from left to right or from right to left).

If you want to align the original PDF Form Fields, you need to make them editable first from Edit Menu => Make Original Form Field Editable.

Align Tools

1. Select Align Tools from Forms or Main Tool Bar.  Or Align Toolbar from Tabbed Toolbars.
2. Select the "Multiple Selection" Button if it is not selected;
3. Click the objects for alignment. At least 2 objects are needed to align;
4. Select Align Left, Horizontal Middle, Right, Top, Vertical Center, Bottom, Space Evenly Across/Down, Make Same Width or Height;

Multiple Selection Button Must be selected before use
Align Objects Left Click at least 2 objects before use
Align Objects Horizontal Middle Click at least 2 objects before use
Align Objects Right Click at least 2 objects before use
Align Objects Top Click at least 2 objects before use
Align Objects Vertical Center Click at least 2 objects before use
Align Objects Bottom Click at least 3 objects before use
Space Objects Evenly Across Click at least 3 objects before use
Space Objects Evenly Down Click at least 2 objects before use
Make Objects Same Width Click at least 2 objects before use
Make Objects Same Height Click at least 2 objects before use
Make Objects Same Width and Height Click at least 2 objects before use
Delete selected objects Click at least 1 objects before use

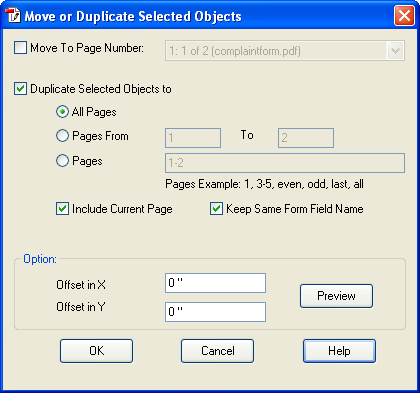

Move or Copy selected Objects accurately with offset in X and Y Click at least 1 objects before use
Move Selected Objects Left by One Point Click at least 1 objects before use
Move Selected Objects Right by One Point Click at least 1 objects before use
Move Selected Objects Up by One Point Click at least 1 objects before use
Move Selected Objects Down by One Point Click at least 1 objects before use

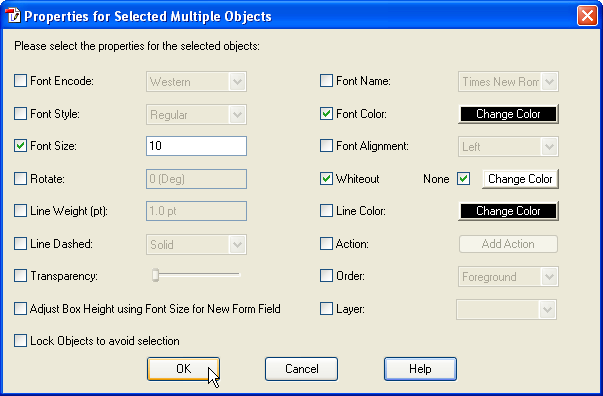

Properties for Selected Multiple Objects Click at least 1 objects before use

After Multiple Selection by Mouse Dragging to select multiple objects, you can change the properties of the selected objects:

5. Click outside object to exit the alignment.

Here is the example to align 3 objects LEFT.

Smart Positioning

The feature of Smart Positioning is used to align accurately the filled objects both horizontally and vertically.

1. The cursor can align to the rulerís mark both horizontally and vertically.

2. The filled objects can align each other both horizontally and vertically. The following gives examples for alignment

  • An example to show horizontal alignment:

  • An example to vertical alignment:

  • An example to show both horizontal and vertical alignment:
